Dual Spreaders

Home / Products / Dual Spreaders

Product Navigation
  • Overview
  • Gallery
  • Technical Data
  • Brochures

Dual Spreaders

Product Range,

Models.  1300 / 1450 / 1600 / 1850 / 2000 / 2450 / 2800 / 3050 / 3450.

West Dual Spreaders are a firm favourite with farmers and contractors alike. The advanced feature of the Dual were recognised as far back as 1982 when it was awarded the Royal Agricultural Society of England GOLD Medal at the Royal Show. Since then many thousands have been sold in the UK. The design of the Dual, bringing the material forward and weight onto the rear of the tractor, ensures confidence and safety in hilly conditions. All types of materials can be handled,From Solid Dung,Slurry,Poultry Manure,Compost and Long Straw Box Manure. The robust build quality and low power requirements have made the West Dual Spreader the market leader with over 50% share in the UK for the last few years.



Main Features

  • LARGE MOVING SIDE WALL, OPTIONAL SPLASH GUARDS
  • HYDRAULICALLY CONTROLLED FEED RATE
  • SPREADS ALL PRODUCTS FROM SLURRY TO SOLIDS
  • EASY ACCESS STEPS
  • UP TO 21M SPREAD
  • LOW POWER REQUIREMENT
  • RASE GOLD MEDAL WINNER

Make an Enquiry

This field is for validation purposes and should be left unchanged.

Dual Working in the field

1600 dual spreader

Dual Lineup

West Lorry

Dual300

Dual Rear

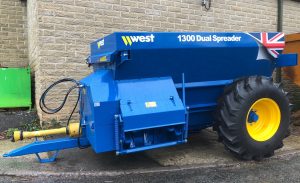

1300 Dual

3000 Dual

Dual Chains

Output rotor

Output motor

Output rotor

6508136A-7DCE-4344-BB02-4CD10E8F0F2F

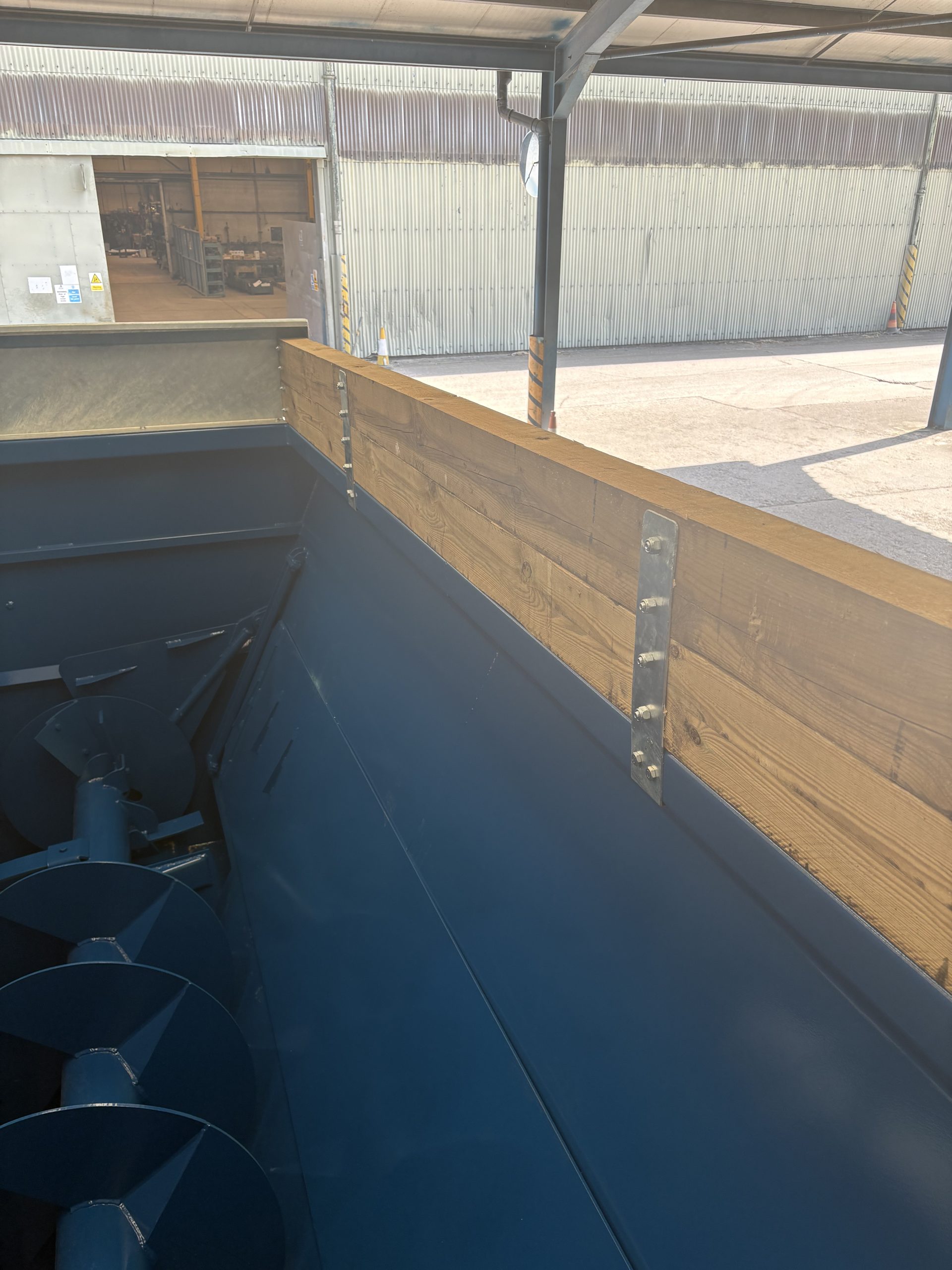

augur

Agitator

Stone trap

Dual Side Door

Overall Height
2.12m
Overall Width
2.42m
Overall Length
4.70m
Loading Height
2.12m
Weight
3.04t
Volume
5.9m³
PTO Speed
540rpm
Power Requirement
52kW (70 hp)
Auger Diameter
740mm
Auger Speed
10.8rpm
Feed Rotor Diameter
630mm
Feed Rotor Width
900mm
Feed Rotor Speed
508rpm
Wheel Size
18.4 x 26 x 12ply 8stud
Capacity
7.00T

Overall Height
2.34m
Overall width
2.42m
Overall Length
4.70m
Loading Height
2.34m
Weight
3.14t
Volume
6.64m³
PTO Speed
540rpm
Power Requirement
52kW (70 hp)
Auger Diameter
740mm
Auger Speed
10.8rpm
Feed Rotor Diameter
630mm
Feed Rotor Width
900mm
Feed Rotor Speed
508rpm
Wheel Size
18.4 x 26 x 12ply 8stud
Capacity
T

Overall Height
2.22m
Overall Width
2.64m
Overall Length
5.49m
Loading Height
2.22m
Weight
3.40t
Volume
7.3m³
PTO Speed
540 rpm
Power Requirement
59kW (80 hp)
Auger Diameter
740mm
Auger Speed
10.8rpm
Feed Rotor Diameter
630mm
Feed Rotor Width
900mm
Feed Rotor Speed
508rpm
Wheel Size
23.1 x 26 x 14ply 8stud
Capacity
10.00T

Overall Height
2.44m
Overall Width
2.64m
Overall Length
5.49m
Loading Height
2.44m
Weight
3.50t
Volume
8.10m³
PTO Speed
540 rpm
Power Requirement
59kW (80 hp)
Auger Diameter
740mm
Auger Speed
10.8rpm
Feed Rotor Diameter
630mm
Feed Rotor Width
900mm
Feed Rotor Speed
508rpm
Wheel Size
23.1 x 26 x 14ply 8stud
Capacity
T

Overall Height
2.35m
Overall Width
2.64m
Overall Length
5.66m
Loading Height
2.35m
Weight
3.84 tonnes
Volume
9.1m³
PTO Speed
540 rpm
Power Requirement
70kW (95 hp)
Auger Diameter
740mm
Auger Speed
10.8rpm
Feed Rotor Diameter
630mm
Feed Rotor Width
900mm
Feed Rotor Speed
508rpm
Wheel Size
3.1 x 26 x 16ply 10stud
Capacity
12.50 Tonnes

Overall Height
2.72m
Overall Width
2.64m
Overall Length
5.66m
Loading Height
2.72m
Weight
3.94T
Volume
11.20m³
PTO Speed
540rpm
Power Requirement
70kW (95 hp)
Auger Diameter
740mm
Auger Speed
10.8rpm
Feed Rotor Diameter
630mm
Feed Rotor Width
900mm
Feed Rotor Speed
508rpm
Wheel Size
3.1 x 26 x 16ply 10stud
Capacity
T

Overall Height
2.5m
Overall Width
2.9m
Overall Length
6.28m
Loading Height
2.5m
Weight
4.7T
Volume
12.7m³
PTO Speed
540 rpm
Power Requirement
97kW (130 hp)
Auger Diameter
740mm
Auger Speed
10.8rpm
Feed Rotor Diameter
630mm
Feed Rotor Width
900mm
Feed Rotor Speed
508rpm
Wheel Size
650/65 x 30.5R
Capacity
15.50T

Overall Height
2.72m
Overall Width
2.90m
Overall Length
6.28m
Loading Height
2.72m
Weight
5.00T
Volume
14.0m³
PTO Speed
540rpm
Power Requirement
97kW (130 hp)
Auger Diameter
740mm
Auger Speed
10.8rpm
Feed Rotor Diameter
630mm
Feed Rotor Width
900mm
Feed Rotor Speed
508rpm
Wheel size
650/65 x 30.5R
Capacity
T

Overall Height
2.87m
Overall Width
2.90m
Overall Length
6.28m
Loading Height
2.87m
Weight
5.10T
Volume
15.48m³
PTO Speed
540rpm
Power Requirement
97kW (130hp)
Auger Diameter
740mm
Auger Speed
10.8rpm
Feed Rotor Diameter
630mm
Feed Rotor Width
900mm
Feed Rotor Speed
508rpm
Wheel Size
650/65 x 30.5R
Capacity
T
Dual Spreader leaflet (pdf)
590.99 KB
